Holley EFI Hi-Ram EFI 92 mm Throttle Body Flange Multi Port Intake Manifold - LS3 / L92 - GM LS-Series

Holley EFI Hi-Ram EFI 92 mm Throttle Body Flange Multi Port Intake Manifold - LS3 / L92 - GM LS-Series

Holley LS Hi-Ram Modular Intake System 300-116 LS3/L92 - EFI Hi-Ram - w/92mm. Throttle Body

  • Outstanding Power Potential
  • Aggressive and Bold Race Styling
  • Broad Power Range

    • Vehicle Applications:

  • 2007-2008 GMC Yukon
  • 2008-2013 Chevrolet Corvette
  • 2007-2008 Cadillac Escalade ESV
  • 2007-2008 Cadillac Escalade
  • 2010-2015 Chevrolet Camaro
  • 2009-2009 Pontiac G8
  • 2008-2008 Hummer H2
  • 2008-2008 Chevrolet Tahoe
  • 2014-2017 Chevrolet SS
  • 2007-2008 Cadillac Escalade EXT
  • 2007-2008 GMC Sierra 1500
  • 2007-2008 GMC Yukon XL 1500

    • Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

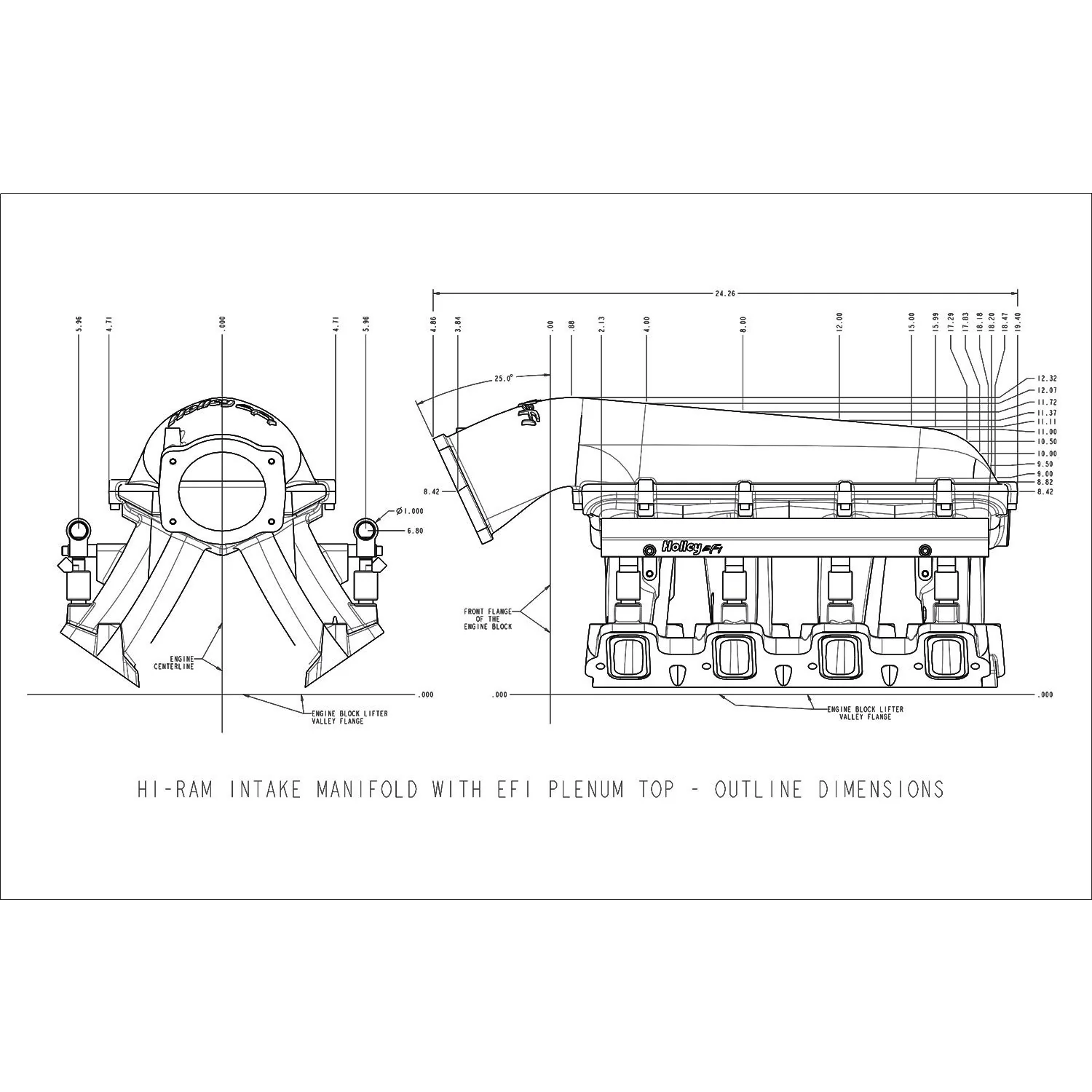

    *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.

  • Total Height with 92/102mm EFI Plenum Top - 12.32" to the lifter valley cover flange on engine block.
  • Port Size - 2.49" Height x 1.21" Wide
  • Mounting Flange Gasket Type - Standard LS3 Molded O-Ring
  • Plenum Top Gasket Type - 3/32" Round O-ring Cord
  • Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height - 8.42" (from engine block lifter valley cover flange), Longitudinal Location - 3.84" (forward from engine block front flange), Angle - 25 deg. (down from vertical)
  • Runner Length - 6.50", As-Cast Runner Cross-Sectional Area - Tapered 4.25 in┬▓ to 2.77 in┬▓
  • Intended for use on naturally aspirated or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM
  • ΓÇó Cast aluminum construction.
  • ΓÇó Intended for use on naturally aspirated or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

    • Product Description:

  • Intake Manifold
  • Hi-Ram EFI
  • 92 mm Throttle Body Flange
  • Multi Port
  • Aluminum
  • Natural
  • LS3 / L92
  • GM LS-Series

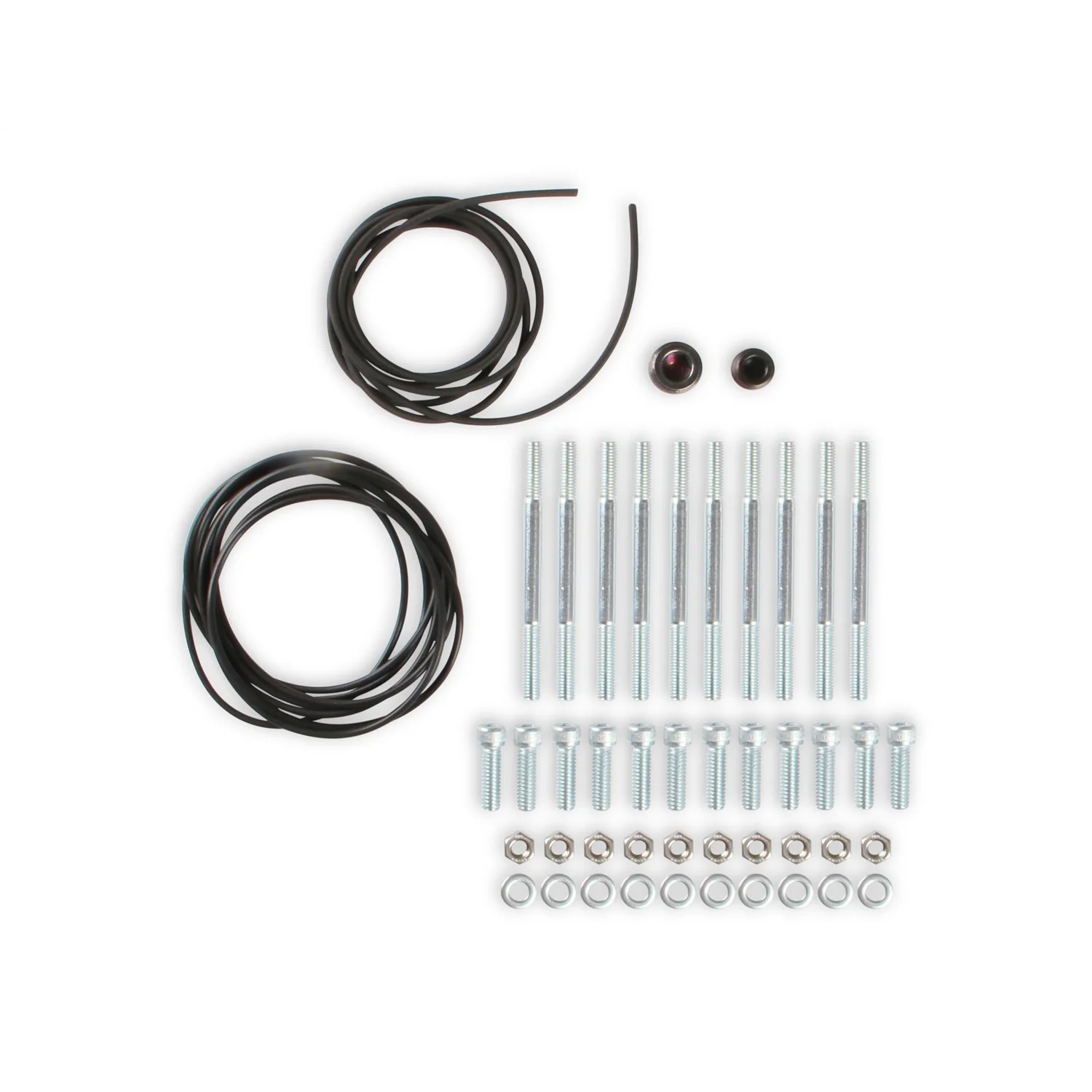

  • Kit
    • For over a century Holley has driven the cutting edge of fuel-system design. That work continues today through Holley’s market-leading EFI products as well as through Holley’s family of best-in-industry brands. Top brands like MSD, Flowmaster, Hurst, Accel, and many more make up the industry’s leading offering of enthusiast-driven products to deliver robust, complete performance solutions for builders, racers, and drivers. From propelling the LS-, Coyote-, and Gen 3 Hemi-swap trends, to continuously innovating late-model and vintage vehicle performance, Holley’s commitment to its customers and their cars is at the core of everything we do.
    $317.99

    Original: $1,059.95

    -70%
    Holley EFI Hi-Ram EFI 92 mm Throttle Body Flange Multi Port Intake Manifold - LS3 / L92 - GM LS-Series—

    $1,059.95

    $317.99
    Product image 1
    Product image 2
    Product image 3
    Product image 4
    Product image 5
    Product image 6
    Product image 7
    Product image 8
    Product image 9
    Product image 10
    Product image 11
    Product image 12

    Description

    Holley LS Hi-Ram Modular Intake System 300-116 LS3/L92 - EFI Hi-Ram - w/92mm. Throttle Body

  • Outstanding Power Potential
  • Aggressive and Bold Race Styling
  • Broad Power Range

    • Vehicle Applications:

  • 2007-2008 GMC Yukon
  • 2008-2013 Chevrolet Corvette
  • 2007-2008 Cadillac Escalade ESV
  • 2007-2008 Cadillac Escalade
  • 2010-2015 Chevrolet Camaro
  • 2009-2009 Pontiac G8
  • 2008-2008 Hummer H2
  • 2008-2008 Chevrolet Tahoe
  • 2014-2017 Chevrolet SS
  • 2007-2008 Cadillac Escalade EXT
  • 2007-2008 GMC Sierra 1500
  • 2007-2008 GMC Yukon XL 1500

    • Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

    *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.

  • Total Height with 92/102mm EFI Plenum Top - 12.32" to the lifter valley cover flange on engine block.
  • Port Size - 2.49" Height x 1.21" Wide
  • Mounting Flange Gasket Type - Standard LS3 Molded O-Ring
  • Plenum Top Gasket Type - 3/32" Round O-ring Cord
  • Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height - 8.42" (from engine block lifter valley cover flange), Longitudinal Location - 3.84" (forward from engine block front flange), Angle - 25 deg. (down from vertical)
  • Runner Length - 6.50", As-Cast Runner Cross-Sectional Area - Tapered 4.25 in┬▓ to 2.77 in┬▓
  • Intended for use on naturally aspirated or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM
  • ΓÇó Cast aluminum construction.
  • ΓÇó Intended for use on naturally aspirated or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

    • Product Description:

  • Intake Manifold
  • Hi-Ram EFI
  • 92 mm Throttle Body Flange
  • Multi Port
  • Aluminum
  • Natural
  • LS3 / L92
  • GM LS-Series
  • Kit
    • For over a century Holley has driven the cutting edge of fuel-system design. That work continues today through Holley’s market-leading EFI products as well as through Holley’s family of best-in-industry brands. Top brands like MSD, Flowmaster, Hurst, Accel, and many more make up the industry’s leading offering of enthusiast-driven products to deliver robust, complete performance solutions for builders, racers, and drivers. From propelling the LS-, Coyote-, and Gen 3 Hemi-swap trends, to continuously innovating late-model and vintage vehicle performance, Holley’s commitment to its customers and their cars is at the core of everything we do.
