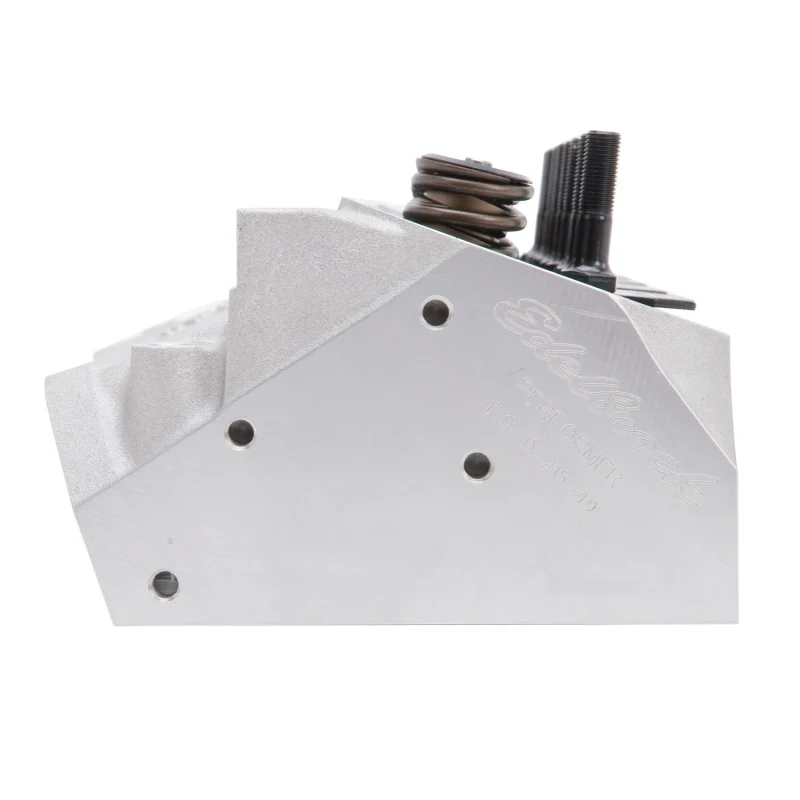

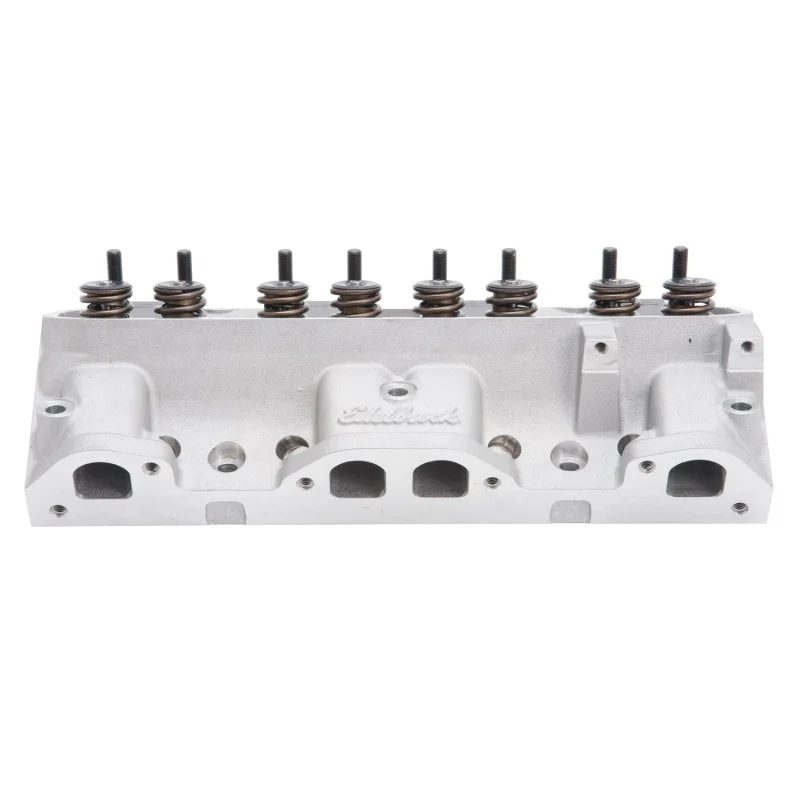

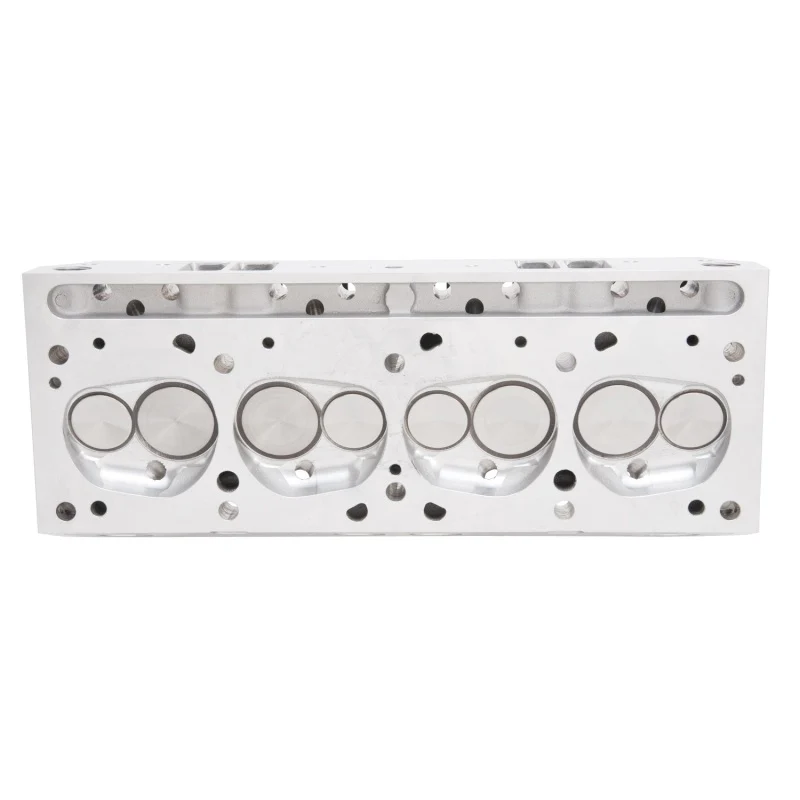

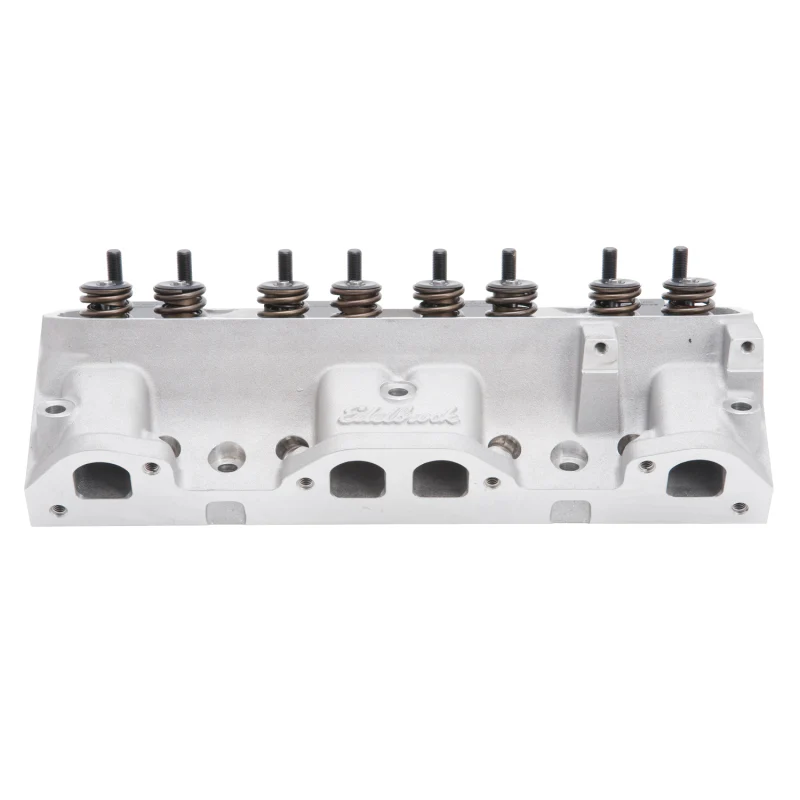

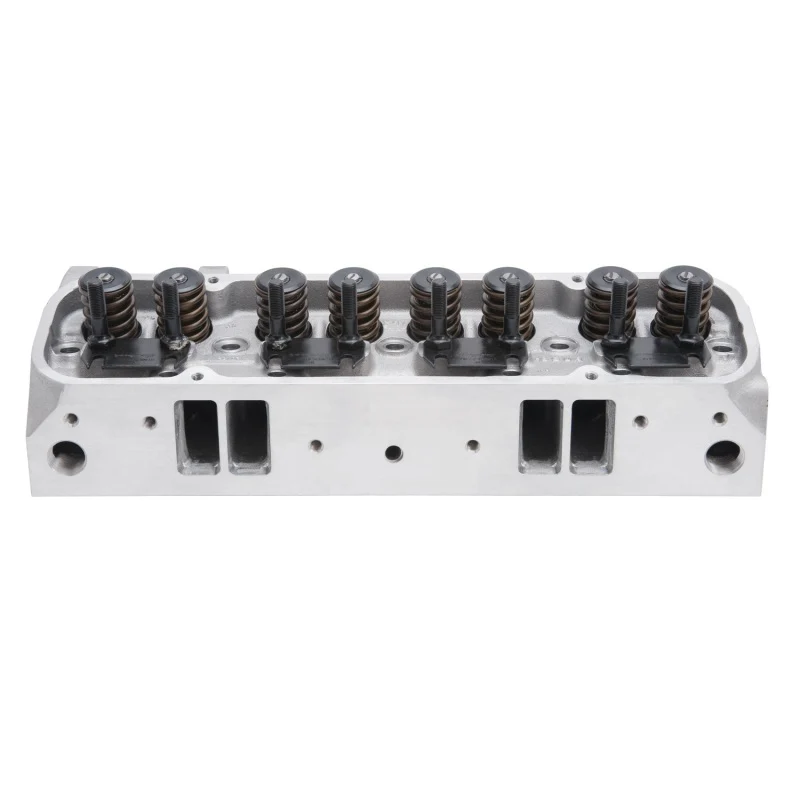

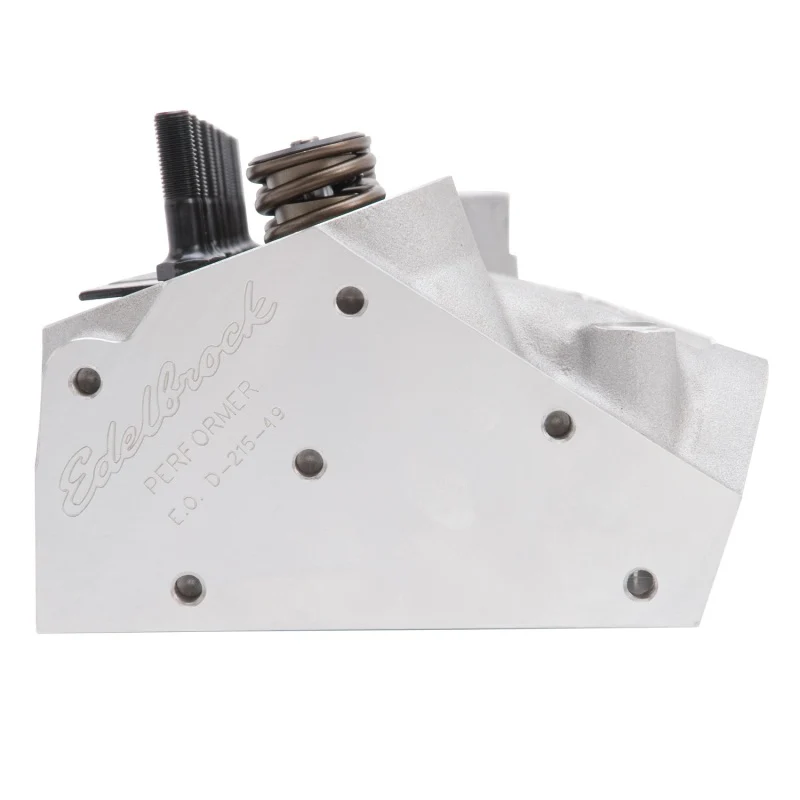

Edelbrock Performer Cylinder Head - Assembled - 2.110 / 1.660 in Valve - 215 cc Intake - 87 cc Chamber - 1.460 in Springs - Pontiac V8
Edelbrock Performer Cylinder Head - Assembled - 2.110 / 1.660 in Valve - 215 cc Intake - 87 cc Chamber - 1.460 in Springs - Pontiac V8
Cylinder Head Specifications:; Combustion chamber volume: 87cc; Intake runner volume: 215cc; Exhaust runner volume: 175cc; Intake valve diameter: 2.11"; Exhaust valve diameter: 1.66"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.46"; Valve spring maximum lift: .575"; Rocker stud: 7/16"; Guideplate: Hardened steel; Pushrod diameter: 5/16"; Valve angle: 14 °; Exhaust port location: Stock Ram Air IV; Spark plug fitment: 14mm x 3/4 reach, gasket seat. These cylinder heads are designed for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head. Performer heads #60579/#60575 are 50-state emissions legal for 1965-79 vehicles. They feature 87cc combustion chambers designed to maximize performance while using less expensive, low-octane fuel with a streetable 9.5:1 compression ratio. Our Performer RPM heads with the 72cc combustion chamber are for higher compression engines. Performer RPM #60509 is semi-machined and must be finished by a professional cylinder head porter. They include valve guides and seats installed with no intake pushrod holes. Performer RPM #60587 is not port matched or bowl blended and is NHRA accepted for Stock & Super Stock. INSTALLATION NOTE: These heads require Ram Air IV (round port) style exhaust manifolds or headers and Edelbrock head bolt kit #8549. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate).
Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.
Product Description:
Original: $1,405.50
-70%$1,405.50
$421.65
Description
Cylinder Head Specifications:; Combustion chamber volume: 87cc; Intake runner volume: 215cc; Exhaust runner volume: 175cc; Intake valve diameter: 2.11"; Exhaust valve diameter: 1.66"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.46"; Valve spring maximum lift: .575"; Rocker stud: 7/16"; Guideplate: Hardened steel; Pushrod diameter: 5/16"; Valve angle: 14 °; Exhaust port location: Stock Ram Air IV; Spark plug fitment: 14mm x 3/4 reach, gasket seat. These cylinder heads are designed for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head. Performer heads #60579/#60575 are 50-state emissions legal for 1965-79 vehicles. They feature 87cc combustion chambers designed to maximize performance while using less expensive, low-octane fuel with a streetable 9.5:1 compression ratio. Our Performer RPM heads with the 72cc combustion chamber are for higher compression engines. Performer RPM #60509 is semi-machined and must be finished by a professional cylinder head porter. They include valve guides and seats installed with no intake pushrod holes. Performer RPM #60587 is not port matched or bowl blended and is NHRA accepted for Stock & Super Stock. INSTALLATION NOTE: These heads require Ram Air IV (round port) style exhaust manifolds or headers and Edelbrock head bolt kit #8549. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate).
Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.
